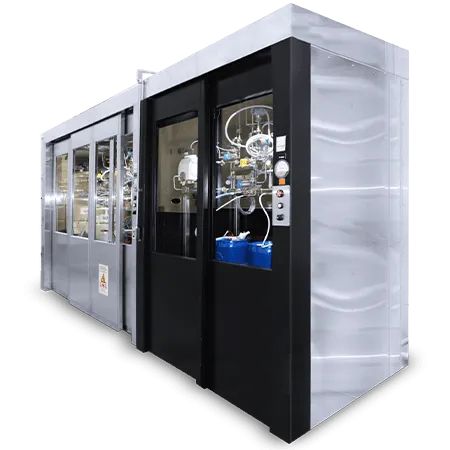

Esco Glassware Hoods (EGH)
The Esco Glassware Hood is the premium solution for containing specialized equipment in a kilo lab, pilot plant or R&D environment. This may also act as an industrial fume hood in facilities requiring corrosion resistance against large volumes of solvents and chemicals.
Coined after “glassware reactors” and “fume hoods”, glassware hoods are customizable units made to serve their containment purpose for glassware set-ups for batch reactions, distillation set-ups, and chemical synthesis, providing operator protection against fumes and spillages/breakages and safety protection of fume/vapor explosive properties.
Applications
Pharmaceutical
Nutraceutical
Food
Kilo Lab
Chemical Process
Biological
Animal
Electronic
-
Robust Internal Construction
Stainless Steel option of 304 or 316L internal material or Chemical Resistant Halar (ECTFE)
-
Accessible Panel
Removable panels for utility piping access
-
Durable Doors
Toughened glass sashes in sliding doors
-
Modular Design
Allows future system adjustment without full booth alteration with available option to fully customized the unit
-
Integrated Controls
Option for airflow alarm and indicator light/s for monitoring

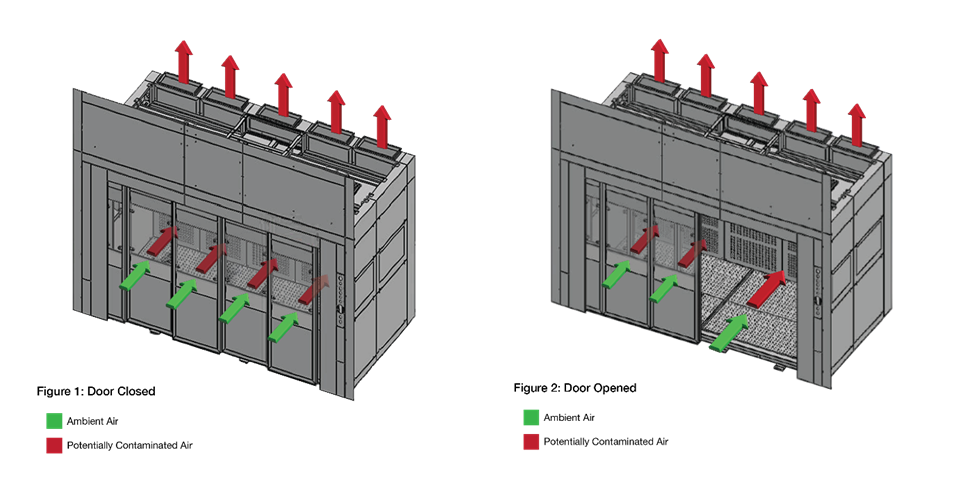

Esco Glassware Hood (EGH), as standard, is a passive cabinet that relies on the facility’s HVAC system to suction vast amounts of air through the equipment.
The EGH reduces the operator’s exposure to hazardous fumes, vapors, and gases by diluting the hazardous vapors using a large amount of air, then drawing it out through the duct of the facility’s exhaust system.
The inflow of air is utilized to avoid untoward exposure to the operator outside of the hood while the hazardous process is taking place.
Note: The EGH required airflow volume depends on its intended use and operation. It is critical that the hood be used as it was intended (door open/door closed) in line with the client-specific equipment load and process.
https://www.escopharma.com/
GENERAL SPECIFICATIONS Esco Glassware Hood |
EGH-2 |
EGH-3 |
EGH-4 |
EGH-5 |
|
Nominal
Hood Size (Internal Width) |
2000 mm |
3000 mm |
4000 mm |
5000 mm |
|
External
Width |
2300 mm |
3300 mm |
4300 mm |
5300 mm |
|
Internal
Depth Dimension Options |
900 mm |
||||
1200 mm |
|||||
1800 mm |
|||||
2100 mm |
|||||
External
Depth |
+ 500 mm from the Internal Depth |
||||
External
Width Dimension |
2400 mm |
||||
2500 mm |
|||||
2900 mm |
|||||
External
Height Dimension Options |
+ 300 mm from the Internal Height |
||||
Sash
Airflow Velocity |
0.5 m/s (100 fpm) when one door
opens* |
||||
Material
of Construction |
Hood |
Stainless Steel 316/304, Halar
(ECTFE), electrogalvanized steel with IsocideTM white oven-baked epoxy
powder-coating, Combination (Internal SS 301/316, External powder-coated
electro-galvanized steel) |
|||
Sash |
Phenolic glass, Polycarbonate,
Tempered glass |
||||
Light |
LED light |
||||
Electrical
Requirements |
120 VAC 50/60 Hz for hood
controls** |
||||
220 VAC 50/60 Hz for hood
controls** |
Note:
Custom dimensions and specifications can be provided upon client
request.
*To be discussed with the client for door specifications.
**Additional outlets require additional electrical supplies.
**for Open Loop External Blower
Carbon Filter
Material handling (conveyors, turntables, etc.)
Hazardous area configurations to meet ATEX rating requirements (NEC 505/NEC 500)
Sump tray for containment of spills
Sliding or hinged doors
Vertical sliding sashes
Airflow monitoring with alarms
Full customization available
-
What is edge of EGH from other chemical hoods available in the market?
EGH provides a leading solution by providing a controlled environment for containment of small to large scale designed dedicated equipment for handling of high-risk, flammable, toxic chemicals as it reduces the environment and operator’s exposure to hazardous fumes, vapors, and gases. -
What is the capability of EGH?
EGH is capable of containing kilo labs equipment set-ups from small laboratory scale to large scale production. EGH can accommodate oversized apparatus and are available in widths up to 16 feet such as bioreactors.
-
What is the difference between Esco Glassware Hood (EGH) vs Floor-Mounted Fume Hood (EFF)?
One common misconception is that Glassware Hoods and Floor-Mounted Fume Hoods are one and the same. See below how they are differentiated:
Difference of Esco Glassware
Hood (EGH) vs Floor-Mounted
Fume Hood (EFF)
EGH
EFF
Application
Enclosure of laboratory chemical reactors for kilo lab or pilot plants set-up.
Tall apparatus, large containers that require increased height area.
Operator, product, and environment protection
Operator protection only
Dimensions
Internal widths are in increments of 0.8 and 1.0 m. More flexible for adjusting dimensions as per client’s request.
Nominal size ranging from 4 to 8 feet only.
Construction
Stainless Steel 316/304, Halar (ECTFE), electrogalvanized steel with IsocideTM white oven-baked epoxy powder coating, Combination (Internal SS 301/316, External powder-coated electro-galvanized steel)
Electrogalvanized steel with Epoxy-polyester hybrid ISOCIDE™ powder coating
Filtration
Through HVAC system
Optional HEPA/ULPA filters, Carbon filters
Ducted
Optional filter integration
Door Design
High durable heavy duty left right sliding doors
Light duty vertical sliding
