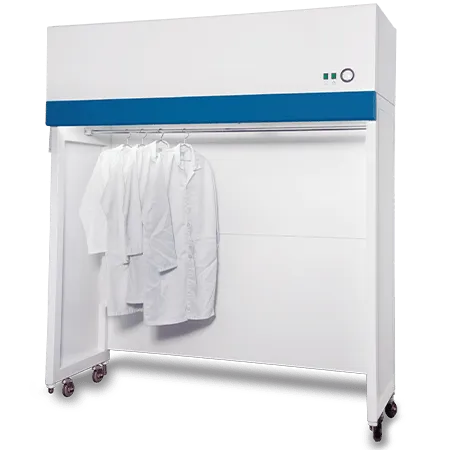

Esco Garment Storage Cabinet
Esco laminar flow cabinets are the premium selection for the discerning user, offering a combination of value, high quality construction, low operating noise levels, and a wide product range to suit all budgets, from an industry leader.
Esco garment storage cabinets make a positive contribution to maintaining the cleanliness of a cleanroom environment as it enables garments to be stored in a visible and organized manner.
-
Reliable rocker switches control the fan and lights and a Minihelic™ pressure gauge monitors cabinet operation
- Built-in warm white, electronically ballasted, 5000k lighting provides excellent illumination of the work zone and reduces operator fatigue
- The reliable lighting system is zero-flicker and instant start
All components are designed for maximum chemical resistance and enhanced durability for a long service life
The main body of the cabinet is constructed with industrial-grade electrogalvanized steel
The cabinet can be designed as mobile with caster wheels or static via built-in leveling feet
All cabinet components are cleanroom compatible
Isocide™ eliminates 99.9% of surface bacteria within 24 hours of exposure
Esco garment storage cabinets make a positive contribution to maintaining the cleanliness of a cleanroom environment.
HEPA-filtered airflow keeps garments clean during storage and handling
-
High quality HEPA filters utilizing an improved mini-pleated separation technique to maximize surface area improving efficiency and extending the filter life
Filters operate at a typical efficiency of > 99.999% at 0.1 to 0.3 micron sizes, providing superior product protection over conventional HEPA filters
Enables garments to be stored in a visible and organized manner
Esco laminar flow cabinets provide ISO Class 3 air cleanliness within the work zone as per ISO 14644-1, 100 times cleaner than the usual Class 5 classification
An additional disposable prefilter on all models traps large particles in the inflow air prior to reaching the main filter, protecting it against damage and prolonging its life
|
General Specifications, Garment Storage Cabinet |
|||
|
Model |
EQU/04-EGSC |
EQU/06-EGSC |
|
|
Nominal Size |
1.2 meters (4’) |
1.8 meters (6’) |
|
|
External Dimensions (W x D x H) |
1340 x 740 x 2240 mm 52.8" x 29.1" x 88.2" |
1950 X 740 X 2240 mm 76.8" x 29.1" x 88.2" |
|
|
Internal Storage Area, Dimensions (W x D x H) |
1240 x 645 x 1790 mm 48.8" x 25.4" x 70.5" |
1850 x 645 x 1790 mm 72.8" x 25.4" x 70.5" |
|
|
Storage Capacity |
16 garments on hangers (4’ model) |
24 garments on hangers (6’ model) |
|
|
Average Airflow Velocity |
0.45 m/s (90 fpm) |
||
|
Pre-Filter |
Disposable and non-washable polyester fibers with 85% arrestance / EU3 rated |
||
|
ULPA Filter Typical Efficiency |
99.999% for particles size at 0.3 microns |
||
|
Sound Emission Per IEST-RP-CC002.2 |
61 dBA |
63 dBA |
|
|
Fluorescent Lamp Intensity At Zero Ambient |
>800 Lux (74 foot candles) |
||
|
Cabinet Construction |
Main Body |
1.2 mm (0.05”) 18 gauge electro-galvanised steel with white oven-baked epoxy powder-coated finish |
|
|
Electrical |
220-240V, AC, 50Hz, 1Ø |
EQU/04-EGSC |
EQU/06-EGSC |
|
Cabinet Nominal Power |
378 W |
628 W |
|
|
Cabinet Full Load Amps (FLA) |
1.8 A |
4 A |
|
|
Cabinet BTU |
1290 |
2143 |
|
|
Net Weight |
150 kg (331 lbs) |
220 kg (484 lbs) |
|
|
Gross Weight |
229.5 kg (506 lbs) |
311.6 kg (687 lbs) |
|
|
Shipping Dimensions, Maximum (W x D x H) |
2150 x 950 x 1610 mm 84.6" x 37.4" x 63.4" |
2150 x 950 x 1610 mm 84.6" x 37.4" x 63.4" |
|
|
Shipping Volume, Maximum |
3.29 m³ (116 cu.ft.) |
3.29 m³ (116 cu.ft.) |
|
ACCESSORIES
Pressure gauge
Stainless steel rod
Fluorescent Lamps
Caster Wheel
Leveling feet
Operating rocker switches
Disposable prefilter
