Frontier® Radioisotope™
Radiotherapy with radiopharmaceutical is a developing medical line that involves radiation from radioisotopes. Commonly used for therapy and diagnosis, exposure to ionizing radiation from radioisotopes on the human body can also produce harmful biological effects.
One of the most used radioisotopes used for hyperthyroid and thyroid cancer is radioiodine or radioisotope of iodine (Iodine-131). Radioisotope of iodine-131 is usually prepared in oral solid or liquid dosage form. To safeguard the operator from the radiation emitted by the materials, radioiodine dispensing requires top-tier equipment.
Key Benefits:
Smooth coved corners
Reinforced worksurface
Excellent aesthetics
5 degree sloped front
Superior containment at 0.3m/s
High energy savings

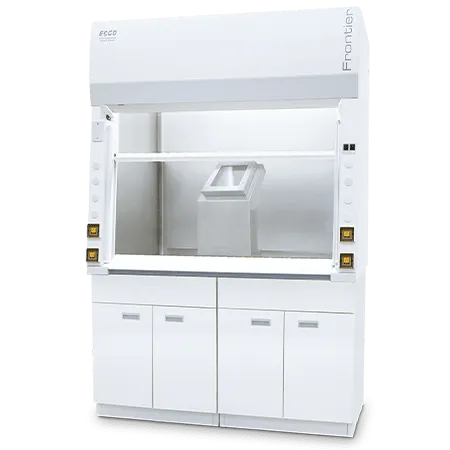

Esco Frontier® Radioisotope™ Fume Hood is designed to be used when handling radioactive materials. This specialized ducted fume hood is built with stainless steel internal surfaces (including the work surface) with coved seamless welded corners for easy cleaning and decontamination.
Esco Frontier® Radioisotope™ Fume Hood has been engineered to provide maximum safety when handling radiopharmaceuticals and other radioactive materials by the capability to be fully customized of lead-shielding thickness and integration of third-party equipment for dispensing the radioactive materials such as generator and dose calibrator.
Esco Frontier® Radioisotope™ Fume Hood is fabricated suitable for handling radioisotopes like radioiodine with various adjustments to increase safety measures for the operator and environment by optional carbon filter to trap volatile iodine, horizontal sliding chest shield that can move from left to right for optimum protection, and L-block. In addition, these hoods provide containment performance similar to that of high-performance low-velocity fume hoods.
Tri-wall construction provides a sturdy and durable structure
Lead-shielded Protection: customizable depending on the client’s requirements for side walls and work zone bottom
XL Sentinel Microprocessor-based control and alarm system to monitor airflow
Modular and easily customized with your desired equipment integrated into the workstation (generator, dose calibrator, automatic dipper, waste bin)
Ergonomic sloped front eliminates glare off the front window and ensures operator comfort during extended usage
| Guide to Models | |||||||||||
| EFI-_D_ _W-_ | |||||||||||
| External Width | Code | Internal Depth | Code | Internal Liner | Code | Sash Type | Code | Color | Code | Electrical | Code |
| 1220 mm (48.0") | 4U | 900 mm (35.4") | D | SS 304 | 4 | Vertical | V | Esco White | W | 220-240 VAC, 50/60 Hz | 8 |
| 1525 mm (60.0") | 5U | SS 316 (optional) | 6 | Combination | C | 110-120 VAC, 50/60 Hz | 9 | ||||
| 1830 mm (72.0") | 6U | ||||||||||
| 2440 mm (96.0") | 8U | ||||||||||
| General Specifications, Frontier® Radioisotope™ Fume Hoods | |||||
| Model | 220-240 VAC, 50/60 Hz, 1ø |
EFI-4UD4CW-8 | EFI-5UD4CW-8 | EFI-6UD4CW-8 | EFI-8UD4VW-8 |
| EFI-4UD6CW-8 | EFI-5UD6CW-8 | EFI-6UD6CW-8 | |||
| EFI-4UD4VW-8 | EFI-5UD4VW-8 | EFI-6UD4VW-8 | EFI-8UD6VW-8 | ||
| EFI-4UD6VW-8 | EFI-5UD6VW-8 | EFI-6UD6VW-8 | |||
| 110-120 VAC, 50/60 Hz, 1ø |
EFI-4UD4CW-9 | EFI-5UD4CW-9 | EFI-6UD4CW-9 | EFI-8UD4VW-9 | |
| EFI-4UD6CW-9 | EFI-5UD6CW-9 | EFI-6UD6CW-9 | |||
| EFI-4UD4VW-9 | EFI-5UD4VW-9 | EFI-6UD4VW-9 | EFI-8UD6VW-9 | ||
| EFI-4UD6VW-9 | EFI-5UD6VW-9 | EFI-6UD6VW-9 | |||
| Nominal Size | 1.2 meter (4’) | 1.5 meter (5’) | 1.8 meter (6’) | 2.4 meter (8’) | |
| External Dimensions (W x D x H) |
Fume Hood unit only | 1220 x 900 x 1400 mm (48.0" x 35.4" x 55.1") |
1525 x 900 x 1400 mm (60.0" x 35.4" x 55.1") |
1830 x 900 x 1400 mm (72.0" x 35.4" x 55.1") |
2440 x 900 x 1400 mm (96.1" x 35.4" x 55.1") |
| With Exhaust Collar | 1220 x 900 x 1521 mm (48.0" x 35.4" x 59.9") |
1525 x 900 x 1521 mm (60.0" x 35.4" x 59.9") |
1830 x 900 x 1521 mm (72.0" x 35.4" x 59.9") |
2440 x 900 x 1521 mm (96.1" x 35.4" x 59.9") |
|
| With Fully Opened Sash | 1220 x 900 x 1603 mm (48.0" x 35.4" x 63.1") |
1525 x 900 x 1603 mm (60.0" x 35.4" x 63.1") |
1830 x 900 x 1603 mm (72.0" x 35.4" x 63.1") |
2440 x 900 x 1603 mm (96.1" x 35.4" x 63.1") |
|
| Internal Dimensions (W x D x H) |
996 x 753 x 1246 mm (39.2" x 29.6" x 49.1") |
1301 x 753 x 1230 mm (51.2" x 29.6" x 49.1") |
1606 x 753 x 1230 mm (63.2" x 29.6" x 49.1") |
2216 x 753 x 1230 mm (87.2" x 29.6" x 49.1") |
|
| Construction | Main Body | Electrogalvanized steel with Epoxy-polyester hybrid Isocide™ powder coating | |||
| Internal Liner (default) | Stainless Steel 305 (Optional upgrade to SS 316) | ||||
| Worktop (default) | Stainless Steel 305 (Optional upgrade to SS 316) | ||||
| Sash Specifications | Sash Material | Tempered Laminated and Framed Sash Glass | |||
| Sash Configuration | Vertical or Combination | Vertical | |||
| Sloping | 5° | ||||
| Maximum Sash Opening | 740 mm (29.1") | ||||
-
Horizontal sliding chest shield
-
Shielded compartments for integration of generator, dose calibrator and waste bin
-
Sink, faucet and service fixture
Options
-
All Stainless steel construction or externally powder coated electrogalvanized steel
-
Expandable up to six-glove negative pressure isolator for operator and environment protection
