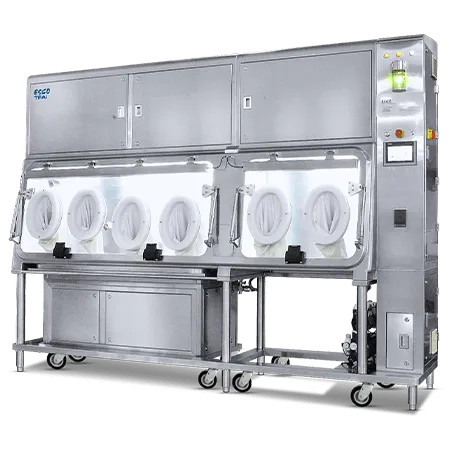

Turbulent Flow Aseptic Isolator™ (TFAI™)
The Esco Turbulent Flow Aseptic Isolator (TFAI) is a free-standing isolator complying with the most stringent regulatory requirements. The isolator has an automated airflow and pressure control to assure a safe, clean, and microbial-free environment in performing testing and other processes requiring the same environmental parameters. The TFAI’s ability to meet turbulent grade A conditions provide a high degree of containment separation for product, operator, and environment.
An improved mini-pleat separation technique maximizes filter surface area, improves efficiency, and extends filter life over conventional separation
Utilizes a Bag-in, Bag-out Filter to safely remove the filter after bio-decontamination. It provides protection against exposure to hazardous materials for the maintenance personnel and the environment
The electromagnetic interlocking door mechanism with time delayed ingress/egress control ensures work zone remains sterile during transfer of items
Optional chemical dunk tanks for BSL 3&4 applications and sharps disposal system enables smoother workflow and minimizes transfers to enhance personnel protection and sterility
Improved safe-change cuff rings enable glove change with zero risk of contamination.
Rapid Transfer Ports provide a safe and easy method for moving specimens, materials, supplies and waste without breaking containment
The Esco Turbulent Flow Aseptic (Grade A) Isolator is a freestanding Isolator that has a very low leakage rate, complying with the most stringent leakage criteria as stated in ISO 14644-7.
The isolator can be supplied with or without a pass-through chamber. It has an automated airflow and pressure control to assure a clean and microbial-free environment for sterility testing.
The isolator’s ability to meet Turbulent Grade A conditions and provide a high degree of containment separation for product, operator, and environment is unquestionable.
|
General Specifications Turbulent Flow Aseptic |
TFA-2G |
TFAI-3G |
TFAI-4G |
|
|
No. of Chambers |
2 (1 Process Chamber and 1 Pass Chamber) |
|||
|
Nominal Size Main Chamber (Width) |
1200 mm (47.2”) |
1600 mm (62.9”) |
2000 mm (78.7”) |
|
|
External Dimensions |
With BIBO |
1200 mm x 1100 mm x 3000 mm (47.2” x 43.3” x 118.1”) |
1600 mm x 1100 mm x 3000 mm (62.9” x 43.3” x 118.1”) |
2000 mm x 1100 mm x 3000 mm (78.7” x 43.3” x 118.1”) |
|
Without BIBO |
1200 mm x 1100 mm x 2600 mm (47.2” x 43.3” x 102.4”) |
1600 mm x 1100 mm x 2600 mm (62.9” x 43.3” x 102.4”) |
2000 mm x 1100 mm x 2600 mm (78.7” x 43.3” x 102.4”) |
|
|
With Adjustable Base Stand (Min) |
1200 mm x 1100 mm x 2300 mm (47.2” x 43.3” x 90.6”) |
1600 mm x 1100 mm x 2300 mm (62.9” x 43.3” x 90.6”) |
2000 mm x 1100 mm x 2300 mm (78.7” x 43.3” x 90.6”) |
|
|
With Adjustable Base Stand (Max) |
1200 mm x 1100 mm x 2700 mm (47.2” x 43.3” x 106.3”) |
1600 mm x 1100 mm x 2700 mm (62.9” x 43.3” x 106.3”) |
2000 mm x 1100 mm x 2700 mm (78.7” x 43.3” x 106.3) |
|
|
External Dimensions |
With BIBO |
2465 mm x 1100 mm x 3000 mm (97.0” x 43.3” x 118.1”) |
2865 mm x 1100 mm x 3000 mm (112.8” x 43.3” x 118.1”) |
3265 mm x 1100 mm x 3000 mm (128.5” x 43.3” x 118.1”) |
|
Without BIBO |
2465 mm x 1100 mm x 2600 mm (97.0” x 43.3” x 102.4”) |
2865 mm x 1100 mm x 2600 mm (112.8” x 43.3” x 102.4”) |
3265 mm x 1100 mm x 2600 mm (128.5” x 43.3” x 102.4”) |
|
|
With Adjustable Base Stand (Min) |
2465 mm x 1100 mm x 2300 mm (97.0” x 43.3” x 90.6”) |
2865 mm x 1100 mm x 2300 mm (112.8” x 43.3” x 90.6”) |
3265 mm x 1100 mm x 2300 mm (128.5” x 43.3” x 90.6”) |
|
|
With Adjustable Base Stand (Max) |
2465 mm x 1100 mm x 2700 mm (97.0” x 43.3” x 106.3”) |
2865 mm x 1100 mm x 2700 mm (112.8” x 43.3” x 106.3”) |
3265 mm x 1100 mm x 2700 mm (128.5” x 43.3” x 106.3”) |
|
|
External Dimensions |
With BIBO |
2065 mm x 1100 mm x 3000 mm (81.3” x 43.3” x 118.1”) |
2465 mm x 1100 mm x 3000 mm (97.0” x 43.3” x 118.1”) |
2865 mm x 1100 mm x 3000 mm (112.8” x 43.3” x 118.1”) |
|
Without BIBO |
2065 mm x 1100 mm x 2600 mm (81.3” x 43.3” x 102.4”) |
2465 mm x 1100 mm x 2600 mm (97.0” x 43.3” x 102.4”) |
2865 mm x 1100 mm x 2600 mm (112.8” x 43.3” x 102.4”) |
|
|
With Adjustable Base Stand (Min) |
2065 mm x 1100 mm x 2300 mm (81.3” x 43.3” x 90.6”) |
2465 mm x 1100 mm x 2300 mm (97.0” x 43.3” x 90.6”) |
2865 mm x 1100 mm x 2300 mm (112.8” x 43.3” x 90.6”) |
|
|
With Adjustable Base Stand (Max) |
2065 mm x 1100 mm x 2700 mm (81.3” x 43.3” x 106.3”) |
2465 mm x 1100 mm x 2700 mm (97.0” x 43.3” x 106.3”) |
2865 mm x 1100 mm x 2700 mm (112.8” x 43.3” x 106.3”) |
|
|
Internal Dimensions (W x D x H) |
1192 mm x 1080 mm x 842 mm (46.9” x 42.5” x 33.1”) |
1592 mm x 1080 mm x 842 mm (62.7” x 42.5” x 33.1”) |
1992 mm x 1080 mm x 842 mm |
|
|
Chamber Sheet Metal |
Stainless Steel Type 316L (interior) Stainless Steel Type 304 (exterior) |
|||
|
Filter Type |
ULPA filter (U15) |
|||
|
Support Frame & Service Housing |
Stainless Steel Type 304 |
|||
|
Chamber Environment |
ISO Class 5 (Grade A) |
|||
|
Airflow Type |
Turbulent |
|||
|
Lighting Intensity |
≥ 500 Lux (≥ 47 foot-candles) |
|||
|
Noise Level |
≤ 65 dBA |
|||
|
Electrical Requirement |
AC 230-240 V, 50/60 Hz, 1 Ph, 25A |
|||
|
General Specifications Turbulent Flow Aseptic |
TFA-2G |
TFAI-3G |
TFAI-4G |
||
|
No. of Chambers |
2 (1 Process Chamber and 1 Pass Chamber) |
||||
|
Nominal Size Main Chamber (Width) |
1200 mm (47.2”) |
1600 mm (62.9”) |
2000 mm (78.7”) |
||
|
External Dimensions (W x D x H) |
With Pod Flange |
With BIBO |
1200 mm x 780 mm x 3000 mm (47.2” x 30.7” x 118.1”) |
1600 mm x 780 mm x 3000 mm (62.9” x 30.7” x 118.1”) |
2000 mm x 780 mm x 3000 mm (78.7” x 30.7” x 118.1”) |
|
Without BIBO |
1200 mm x 780 mm x 2600 mm (47.2” x 30.7” x 102.4”) |
1600 mm x 780 mm x 2600 mm (62.9” x 30.7” x 102.4”) |
2000 mm x 780 mm x 2600 mm (78.7” x 30.7” x 102.4”) |
||
|
With Adjustable Base Stand (Min) |
1200 mm x 780 mm x 2300 mm (47.2” x 30.7” x 90.6”) |
1600 mm x 780 mm x 2300 mm (62.9” x 30.7” x 90.6”) |
2000 mm x 780 mm x 2300 mm (78.7” x 30.7” x 90.6”) |
||
|
With Adjustable Base Stand (Max) |
1200 mm x 780 mm x 2700 mm (47.2” x 30.7” x 106.3”) |
1600 mm x 780 mm x 2700 mm (62.9” x 30.7” x 106.3”) |
2000 mm x 780 mm x 2700 mm (78.7” x 30.7” x 106.3”) |
||
|
Without Pod Flange |
With BIBO |
1200 mm x 695 mm x 3000 mm (47.2” x 27.4” x 118.1”) |
1600 mm x 695 mm x 3000 mm (62.9” x 27.4” x 118.1”) |
2000 mm x 695 mm x 3000 mm (78.7” x 27.4” x 118.1”) |
|
|
Without BIBO |
1200 mm x 695 mm x 2600 mm (47.2” x 27.4” x 102.4”) |
1600 mm x 695 mm x 2600 mm (62.9” x 27.4” x 102.4”) |
2000 mm x 695 mm x 2600 mm (78.7” x 27.4” x 102.4”) |
||
|
With Adjustable Base Stand (Min) |
1200 mm x 695 mm x 2300 mm (47.2” x 27.4” x 90.6”) |
1600 mm x 695 mm x 2300 mm (62.9” x 27.4” x 90.6”) |
2000 mm x 695 mm x 2300 mm (78.7” x 27.4” x 90.6”) |
||
|
With Adjustable Base Stand (Max) |
1200 mm x 695 mm x 2700 mm (47.2” x 27.4” x 106.3”) |
1600 mm x 695 mm x 2700 mm (62.9” x 27.4” x 106.3”) |
2000 mm x 695 mm x 2700 mm (78.7” x 27.4” x 106.3”) |
||
|
External Dimensions (W x D x H) with 1000 mm Pass Through Chamber |
With Pod Flange |
With BIBO |
2465 mm x 780 mm x 3000 mm (97.0” x 30.7” x 118.1”) |
2865 mm x 780 mm x 3000 mm (112.8” x 30.7” x 118.1”) |
3265 mm x 780 mm x 3000 mm (128.5” x 30.7” x 118.1”) |
|
Without BIBO |
2465 mm x 780 mm x 2600 mm (97.0” x 30.7” x 102.4”) |
2865 mm x 780 mm x 2600 mm (112.8” x 30.7” x 102.4”) |
3265 mm x 780 mm x 2600 mm (128.5” x 30.7” x 102.4”) |
||
|
With Adjustable Base Stand (Min) |
2465 mm x 780 mm x 2300 mm (97.0” x 30.7” x 90.6) |
2865 mm x 780 mm x 2300 mm (112.8” x 30.7” x 90.6”) |
3265 mm x 780 mm x 2300 mm (128.5” x 30.7” x 90.6”) |
||
|
With Adjustable Base Stand (Max) |
2465 mm x 780 mm x 2700 mm (97.0” x 30.7” x 106.3”) |
2865 mm x 780 mm x 2700 mm (112.8” x 30.7” x 106.3”) |
3265 mm x 780 mm x 2700 mm (128.5” x 30.7” x 106.3”) |
||
|
Without Pod Flange |
With BIBO |
2465 mm x 695 mm x 3000 mm (97.0” x 27.4” x 118.1”) |
2865 mm x 695 mm x 3000 mm (112.8” x 27.4” x 118.1”) |
3265 mm x 695 mm x 3000 mm (128.5” x 27.4” x 118.1”) |
|
|
Without BIBO |
2465 mm x 695 mm x 2600 mm (97.0” x 27.4” x 102.4”) |
2865 mm x 695 mm x 2600 mm (112.8” x 27.4” x 102.4”) |
3265 mm x 695 mm x 2600 mm (128.5” x 27.4” x 102.4”) |
||
|
With Adjustable Base Stand (Min) |
2465 mm x 695 mm x 2300 mm (97.0” x 27.4” x 90.6”) |
2865 mm x 695 mm x 2300 mm (112.8” x 27.4” x 90.6”) |
3265 mm x 695 mm x 2300 mm (128.5” x 27.4” x 90.6”) |
||
|
With Adjustable Base Stand (Max) |
2465 mm x 695 mm x 2700 mm (97.0” x 27.4” x 106.3”) |
2865 mm x 695 mm x 2700 mm (112.8” x 27.4” x 106.3”) |
3265 mm x 695 mm x 2700 mm (128.5” x 27.4” x 106.3”) |
||
|
External Dimensions (W x D x H) with 600 mm Pass Through Chamber |
With Pod Flange |
With BIBO |
2065 mm x 780 mm x 3000 mm (81.3” x 30.7” x 118.1”) |
2465 mm x 780 mm x 3000 mm (97.0” x 30.7” x 118.1”) |
2865 mm x 780 mm x 3000 mm (112.8” x 30.7” x 118.1”) |
|
Without BIBO |
2065 mm x 780 mm x 2600 mm (81.3” x 30.7” x 102.4”) |
2465 mm x 780 mm x 2600 mm (97.0” x 30.7” x 102.4”) |
2865 mm x 780 mm x 2600 mm (112.8” x 30.7” x 102.4”) |
||
|
With Adjustable Base Stand (Min) |
2065 mm x 780 mm x 2300 mm (81.3” x 30.7” x 90.6”) |
2465 mm x 780 mm x 2300 mm (97.0” x 30.7” x 90.6”) |
2865 mm x 780 mm x 2300 mm (112.8” x 30.7” x 90.6”) |
||
|
With Adjustable Base Stand (Max) |
2065 mm x 780 mm x 2700 mm (81.3” x 30.7” x 106.3”) |
2465 mm x 780 mm x 2700 mm (97.0” x 30.7” x 106.3”) |
2865 mm x 780 mm x 2700 mm (112.8” x 30.7” x 106.3”) |
||
|
Without Pod Flange |
With BIBO |
2065 mm x 695 mm x 3000 mm (81.3” x 27.4” x 118.1”) |
2465 mm x 695 mm x 3000 mm (97.0” x 27.4” x 118.1”) |
2865 mm x 695 mm x 3000 mm (112.8” x 27.4” x 118.1”) |
|
|
Without BIBO |
2065 mm x 695 mm x 2600 mm (81.3” x 27.4” x 102.4”) |
2465 mm x 695 mm x 2600 mm (97.0” x 27.4” x 102.4”) |
2865 mm x 695 mm x 2600 mm (112.8” x 27.4” x 102.4”) |
||
|
With Adjustable Base Stand (Min) |
2065 mm x 695 mm x 2300 mm (81.3” x 27.4” x 90.6”) |
2465 mm x 695 mm x 2300 mm (97.0” x 27.4” x 90.6”) |
2865 mm x 695 mm x 2300 mm (112.8” x 27.4” x 90.6”) |
||
|
With Adjustable Base Stand (Max) |
2065 mm x 695 mm x 2700 mm (81.3” x 27.4” x 106.3”) |
2465 mm x 695 mm x 2700 mm (97.0” x 27.4” x 106.3”) |
2865 mm x 695 mm x 2700 mm (112.8” x 27.4” x 106.3”) |
||
|
Internal Dimensions (W x D x H) |
1192 mm x 630 mm x 842 mm (46.9” x 24.8” x 33.1”) |
1592 mm x 630 mm x 842 mm (62.7” x 24.8” x 33.1) |
1992 mm x 630 mm x 842 mm (78.4” x 24.8” x 33.1) |
||
|
Chamber Sheet Metal |
Stainless Steel Type 316L (interior) Stainless Steel Type 304 (exterior) |
||||
|
Filter Type |
ULPA filter (U15) |
||||
|
Support Frame & Service Housing |
Stainless Steel Type 304 |
||||
|
Chamber Environment |
ISO Class 5 (Grade A) |
||||
|
Airflow Type |
Turbulent |
||||
|
Lighting Intensity |
≥ 500 Lux (≥ 47 foot-candles) |
||||
|
Noise Level |
≤ 65 dBA |
||||
|
Electrical Requirement |
AC 230-240 V, 50/60 Hz, 1 Ph, 25A |
||||
Pod Flange™, a flexible and detachable worktop which can be integrated with different equipment, according to the operator’s application
Rapid Transfer Ports provide a safe and easy method for moving specimens, materials, supplies and waste without breaking containment
Suitable shelves and basket racks are provided internally within the isolator, purposely designed to accommodate operator’s loading of materials used during sterility testing
Foot Switch for sterility test pump provides hands-free access minimizing movement and reduce operator fatigue
Chemical dunk tanks for BSL 3&4 applications and Sharps disposal system enables smoother workflow and minimizes transfers to enhance personnel protection and sterility
