Laminar Flow Straddle Units

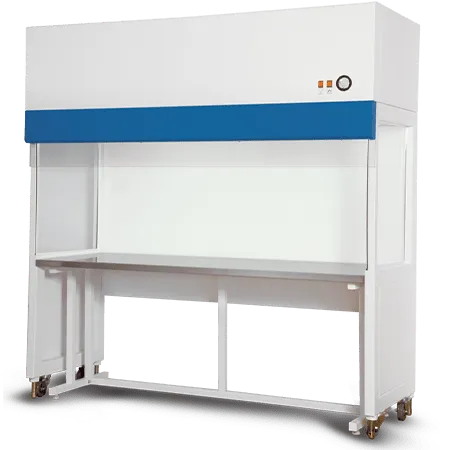

Esco Enterprise Laminar Flow Straddle Units are designed for the protection of large-scale industrial processes which typically require multiple units connected in an assembly line configuration. These straddle units eliminate the operating costs associated with a full-sized ISO Class 3 or 4 cleanroom as it can easily be placed inside an ISO Class 8 area to provide an ultra-clean environment for the main process.
Esco laminar flow clean benches are the premium selection for the discerning purchaser, offering a combination of value, high quality construction, low operating noise levels, and a wide product range to suit all budgets, from the industry leader.
Key Benefits:
Low noise
Reduced vibration
Energy Efficient
Disposable prefilter
Quiet, reliable, permanently lubricated direct drive centrifugal blowers
Long-life HEPA filter for supply airflow
Sterile work zone environment created for optimum product protection
Available in single, double, 1.2 and 1.8 meter (4’ and 6’) models
Multiple units may be connected for production line applications
Units are floor mounted with stainless steel work surfaces isolated from the main frame to reduce vibration
APPLICATIONS
Cleanrooms, electronics assembly, semiconductors, pharmaceutical, aerospace, and medical devices industries
Mycology and food microbiology
Plant and mammalian cell culture
Clinical pharmacy and hospital use
Eliminates vibration (work top good for weighing processes)
Non-biohazardous materials

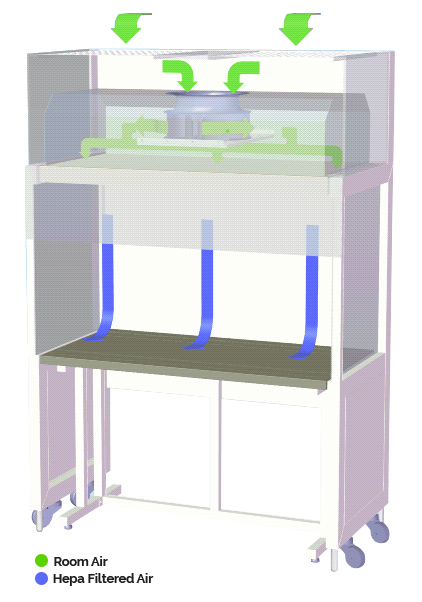

During operation, room air is drawn through the top of the straddle unit via a washable polyurethane prefilter with 20% arrestance, trapping larger particles and increasing the life of the main filter
The air is then forced evenly through the HEPA filter with >99.999% efficiency, resulting in a unidirectional stream of clean air projected vertically over the internal work zone. All airborne contaminants are flushed and diluted, resulting in a particulate-free work environment
The purified air then leaves the storage area across the entire open front of the straddle unit
A nominal filter face velocity of 0.45 m/s (90 fpm) ensures that there is a sufficient number of air changes within the enclosed area of the straddle unit in order to maintain cleanliness
|
General Specifications, Enterprise Laminar Flow Single Straddle Unit |
|||
|
Model |
EQU/04-ESUS |
EQU/06-ESUS |
|
|
Nominal Size |
1.2 meters (4’) |
1.8 meters (6’) |
|
|
External Dimensions (W x D x H) |
1340 x 740 x 2000 mm (52.7" x 29.1" x 78.7") |
1950 x 740 x 2000 mm (76.7" x 29.1" x 78.7") |
|
|
Internal Work Area, Dimensions |
1220 x 645 x 720 mm (48" x 25.4" x 28.3") |
1830 x 645 x 720 mm (72" x 25.4" x 28.3") |
|
|
Usable Work Zone |
1220 x 645 |
1830 x 645 |
|
|
Initial Airflow Velocity |
Average of 0.45 m/s or 90 fpm (+/- 20%) |
||
|
Air Volume |
1205 m3/h |
1810 m3/h |
|
|
Pre-Filter |
Washable non-woven polyester fibers with 90% arrestance and 20% efficiency |
||
|
HEPA Filter Typical Efficiency |
99.99% at partical size 0.3 µm |
||
|
Sound Emission Per IEST-RP-CC002.2 |
62 dBA |
63.5 dBA |
|
|
Fluorescent Lamp Intensity At Zero Ambient |
1000 Lux |
||
|
Cabinet Construction |
Main Body |
1.5 mm (0.06") electro-galvanised steel with white oven-baked epoxy powder-coated finish. |
|
|
Work Zone |
1.2mm (0.05") 18 gauge stainless steel grade 304 |
||
|
Net Weight |
220 kg (484 lbs) |
300 kg (660 lbs) |
|
|
Shipping Weight |
270 kg (594 lbs) |
360 kg (792 lbs) |
|
|
Shipping Dimensions, Maximum (W x D x H) |
2150 x 950 x 1610 mm 84.6" x 37.4" x 63.4" |
2150 x 950 x 1610 mm 84.6" x 37.4" x 63.4" |
|
|
Electrical |
-240V, AC, 50Hz, 1ø |
EQU/04-ESUS |
EQU/06-ESUS |
|
Cabinet Full Load Amps (FLA) |
1.8 A |
4 A |
|
|
Cabinet Nominal Power |
378 W |
628 W |
|
|
Cabinet BTU |
1290 |
2143 |
|
|
General Specifications, Enterprise Laminar Flow Double Straddle Unit |
|||
|
Model |
EQU/04-ESUD |
EQU/06-ESUD |
|
|
Nominal Size |
1.2 meters (4’) |
1.8 meters (6’) |
|
|
External Dimensions (W x D x H) |
1340 x 1450 x 2150 mm (52.7" x 57.1" x 84.6") |
1950 x 1450 x 2150 mm (76.7" x 57.1" x 84.6") |
|
|
Internal Work Area, Dimensions |
1340 x 1340 x 865 mm (52.8" x 52.8" x 34") |
1950 x 1340 x 865 mm (76.8" x 52.8" x 34") |
|
|
Usable Work Zone |
1340 x 1340 |
1950 x 1340 |
|
|
Initial Airflow Velocity |
Average of 0.45 m/s or 90 fpm (+/- 20%) |
||
|
Air Volume |
2410 m3/h |
3620 m3/h |
|
|
Pre-Filter |
Washable non-woven polyester fibers with 90% arrestance and 20% efficiency |
||
|
HEPA Filter Typical Efficiency |
99.99% at partical size 0.3 µm |
||
|
Sound Emission Per IEST-RP-CC002.2 |
63.5 dBA |
65 dBA |
|
|
Fluorescent Lamp Intensity At Zero Ambient |
1000 Lux |
||
|
Cabinet Construction |
Main Body |
1.5 mm (0.06") electro-galvanised steel with white oven-baked epoxy powder-coated finish. |
|
|
Work Zone |
1.2mm (0.05") 18 gauge stainless steel grade 304 |
||
|
Net Weight |
420 kg (924 lbs) |
600 kg (1320 lbs) |
|
|
Shipping Weight |
500 kg (1102 lbs) |
700 kg (1543 lbs) |
|
|
Shipping Dimensions, Maximum (W x D x H) |
1500 x 1600 x 2200 mm (59.0" x 63.0" x 86.6") |
2100 x 1600 x 2200 mm (82.7" x 63.0" x 86.6") |
|
|
Electrical |
220-240V, AC, 50Hz, 1ø |
EQU/04-ESUD |
EQU/06-ESUD |
|
Cabinet Full Load Amps (FLA) |
3.6 A |
8 A |
|
|
Cabinet Nominal Power |
756 W |
1256 W |
|
|
Cabinet BTU |
2580 |
4286 |
|
ACCESSORIES
Prefilter
Ebm-papst® Blower
Fluorescent lamps
Acrylic Side Wall
Leveling Feet
Caster Wheel
Pressure Gauge
Operating Swtich
Isolated Stainless Steel Worktop
