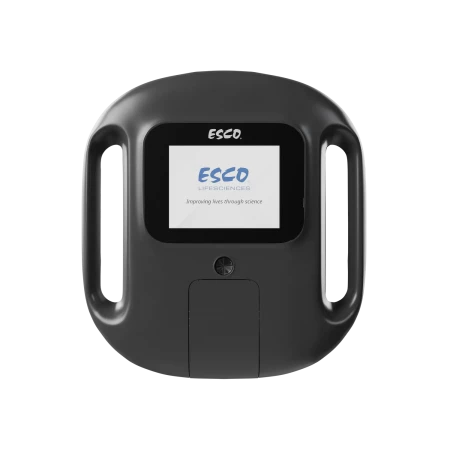

Esco Intelli-Glove Tester (EIGT) Wireless Glove Leak Tester
The Esco Intelli-Glove Tester (EIGT) is Esco’s third-generation wireless glove leak tester, designed for leak detection on gloves, sleeves, and gauntlets used in isolators, RABS, and glove boxes. Operating on the pressure loss principle defined in ISO 14644-7, the system supports routine verification of glove integrity in pharmaceutical and biocontainment environments.
Glove integrity testing is a recognized element of contamination control strategies in aseptic processing. The EIGT is intended to support consistent testing practices where documentation, traceability, and process reliability are required.
Developed as part of Esco’s containment and cleanroom equipment portfolio, the system supports a wide range of applications across controlled environments.
Applicable
markets include, but are not limited to:
- Pharmaceutical Industry
- Biotechnology
- Bioprocess Industry
- Research and Development Facilities
- Any industry that uses Isolator with glove port
Basic Operating Principle
- Pressure loss testing method based on ISO 14644-7
- Controlled inflation and stabilization of the glove or gauntlet
- Leak detection based on pressure change over time
- Applicable for gloves, sleeves, and gauntlets used in isolators, RABS, and glove boxes
- Routine glove integrity testing
System Overview
The Esco Intelli-Glove Tester operates via a Windows-based tablet as a controller and features an integrated touch display on the tester unit itself for a quick parameter and status check. The controller allows users to manage inflation, deflation, and test execution directly at the point of use.
The system is designed to support flexible deployment without fixed cabling, enabling testing around isolators and RABS while maintaining consistent test methodology.
An emergency stop function is included as part of the system design to allow controlled interruption of operation when required.
User-friendly one-touch power ON/OFF operation
Button on surface makes it clearly visible, hence simplify the operation
Portable operation
Powered by a rechargeable lithium battery, the wireless glove leak tester operates without power cables. It is not limited to a single fixed glove port and can be easily moved and used across multiple glove ports on different machines, providing flexible and efficient operation.
Customizable docking glove port adaptor
The adaptor can be designed to suit the existing glove port sizes.
Availability of data connection ports
Equipped with USB and RJ45 ports for data migration to external flash disk or PC.
21 CFR Part 11 compliance
Provides electronic records, electronic signatures and audit trails include alarm logs and test results. Test reports generated in non-editable PDF report.
Configurable test recipes
User-configurable test recipes based on glove type, ensuring consistent and repeatable test parameters.
|
EIGT
Wireless Glove Leak Tester |
|
|
Size |
306 x 328 x 105 mm |
|
Test Flange size |
Based on Esco’s standard glove port,
with customizable size options. |
|
Operation time |
3 hours |
|
Weight |
4 kg |
|
Wifi |
Available |
|
Power |
Removable battery |
|
Charging time |
≤ 3 hours |
|
Working time |
Approx. 3 hours |
|
Tablet
PC |
|
|
Display |
10-inch IPS touch screen 1200 x 1920 |
|
Key |
Power button |
|
Interface |
USB 3.0; Type C; HDMI headphone jack |
|
Battery |
Polymer Lithium-Ion 7.4V/6000 mAh |
Tablet
1 tablet for 8 units of EIGT
Charging station
Store and charge up to 8 EIGT
