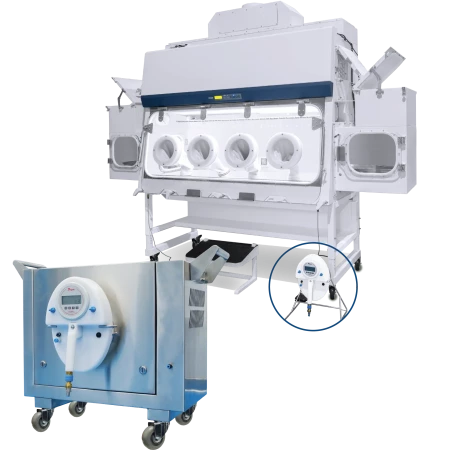

Esco Manual Glove Leak Tester (MGLT)
The Esco Manual Glove Leak Tester (MGLT) facilitates accurate and efficient leak detection on gloves, sleeves, and gauntlets within isolators, RABS, and glove boxes. Utilizing the pressure loss principle in accordance with ISO 10648-2, the system ensures consistent and repeatable results to maintain strict containment integrity.
Engineered for ease of use, the MGLT features a digital pressure differential display for real-time feedback and an intelligent inflatable seal mechanism to guarantee a secure, leak-tight dock during testing. This user-friendly solution provides pharmaceutical facilities with the reliable data necessary to comply with stringent data integrity and aseptic processing guidelines.
Applications:
- Pharmaceutical
- Biotechnology
- Cell and Gene Therapy
- Biocontainment Laboratories
- Research and Development Facilities
Characteristics:
- Portable Control System – Regulates both the inflatable seal pressure of the glove port disc and the pressure injected into the gloves.
- Secure & Airtight Testing – The glove port disc acts as a cover, sealing off gloves and sleeves for an accurate leak test.
- ISO 10648-2 Compliance – Ensures high-precision testing aligned with industry standards.
- User-Friendly Operation – Simple setup with intuitive controls for effortless testing.
Precision Testing with Digital Pressure Differential
Ensures accurate and reliable leak detection with a clear digital display.
Secure Inflatable Seal Mechanism
Features a shut-off valve to dock the tester securely for an airtight fit.
Easy Pressure Injection & Control
Equipped with an air pressure inject button for seamless pressure application. Includes inflate/deflate controls for adjustable sealing.
Intuitive & Step-by-Step Operation
Simple insertion and docking process. Automatic stabilization to 250 Pa or within a 5-minute timeframe.
Reliable & Repeatable Leak Detection
Designed to maintain isolator glove integrity and prevent contamination risks.
Compact, Durable & User-Friendly Design
Lightweight and easy to operate with minimal training required.
For facilities without access to compressed air, an optional Mobile Compressor is available. Designed with an SS304 frame and caster wheels, it delivers cleanroom-compatible, high-quality compressed dry air, meeting the strict requirements of pharmaceutical and cleanroom environments.
General Specifications:
|
Esco Manual Glove Leak Tester (MGLT) |
||
|
Materials |
Outer Casing |
HDPE |
|
Inflatable Sealing Ring |
Silicon rubber |
|
|
Size |
Contact Esco for more
details |
|
|
Test Flange Size |
Circular (200 x 200 mm) |
Oval (200 x 300 mm) |
|
Weight |
2 kg |
|
Available Models:
|
Model Code |
Item
Code |
Description |
|
MGLT-O-WC |
5180314 |
Manual Glove Leak Tester
(Oval Port 200 x 300 mm) with Mobile Compressor |
|
MGLT-O- WOC |
5180313 |
Manual Glove Leak Tester (Oval Port 200 x 300 mm) without Mobile
Compressor |
|
MGLT-C-WC |
5180312 |
Manual Glove Leak Tester
(Oval Port 200 x 200 mm) with Mobile Compressor |
|
MGLT-O-WOC |
5180311 |
Manual Glove Leak Tester (Oval Port 200 x 300 mm) without Mobile
Compressor |
