Upstream process is the first step of bioprocess from early cell isolation and cultivation, to cell banking and culture development of the cells until final harvest where the desired quantity is reached. Since this is the early stage of bioprocessing, the quality of the product is of critical importance. Sustainability of this procedure must also be considered. Thus, compliance to cGMP standards is required. One of the measurable requirement is to warrant that from this stage to the filling and packaging must ensure sterility of the process. These parameters will include the use of equipment like bioreactors and cell therapy aseptic isolators, presence of a clean room, and only certified biotechnologist and technicians will be allowed to handle the delicate living organisms.
Cell isolation is one of the most basic practices in cell culture studies and there are various techniques to do this. The importance of these two processes lie in the goal of understanding certain cell mechanisms in order to formulate new biological drugs and combat specific disease types. To do this, a detailed biochemical analysis is required. Most procedures require a large number of cells that must be physically disrupted so their components can be further isolated and proliferated in pure culture for further analysis.
If the target cell is part of a tissue, it must first be dissociated and separated in various types. Disrupting the extracellular matrix holding the cells together is the first step to isolate specific cells from a tissue sample; and as studies suggest, the best source of viable dissociated cells are those from fetal or neonatal tissues.
The process of disrupting the matrix involves treating the tissue sample with proteolytic enzymes and chelating agents: the former will digest the proteins in the extracellular matrix, while the latter will be binding or chelating the calcium (Ca2+) in the matrix to break cell-cell adhesion. Afterwards, proceed with gentle agitation to attain available single living cells. However, the sample achieved from this process is composed of several types of cells, so the next part involves the isolating the different cell types from the suspension.
Isolating cells of different types from a suspension involves taking advantage of their variation in physiology. This is better exploited by centrifugation and the capacity of other cells to strongly adhere to glass or plastic and, a much refined technique, to a specific antibody that can only bind to one cell type.
However, an even more sophisticated method for cell separation is through the use of an antibody combined to a fluorescent dye. This combination is used to label specific cells so they can be easily separated by non-labelled ones via an electronic fluorescence-activated cell sorter. This machine can easily sort out 1 fluorescent cell from a pool of 1000 unlabelled once and can sort cells a thousandth per second! It does this by allowing individual cells to travel in a single file through a laser beam where the fluorescence of each cell is measured rapidly.
Another form of cell isolation is the laser capture microdissection (LCM) which allows isolation of pure cells from a heterogenous mix or from live cells and even cytological preparations. DNA, RNA, and protein biomolecules extracted by this process can be used for downstream applications such as polymerase chain reaction expression studies, and microarray and proteomic analysis.
As mentioned earlier, most procedures require a large number of cells that must be physically disrupted so their components can be further isolated and proliferated in pure culture for further analysis.
Once specific cells have been isolated from the source, they can then be cultured to allow a much detailed biochemical analysis as well as other formulation studies to be done. More applications of cell culture are for the fields of: monoclonal antibodies, vaccines, enzymes, hormones, interleukins, and certain growth factors.
Cell culture basically refers to growing isolated cells in an artificial environment which mimics the conditions of their natural one ~ complete with nutrients as well as certain temperature settings.
Different Types of Cell Cultures:
- Primary Culture: This is a preparation of cells directly from a parent plant or animal tissue via mechanical or enzymatic measures. Cell proliferation is then maintained through a suitable media in a glass or plastic container whose conditions mimic the original environment. This process can be done without the need to separate different cell types as discussed previously.
Cells in a primary culture all have the same karyotype similar to their tissue of origin. Karyotype refers to the same number and appearance of chromosomes in the nucleus of a (eukaryotic) cell.
It must be noted that primary cultured cells will have a limited lifespan because of the substrate and nutrient exhaustion which can cause toxin build up and dampen further cell growth.
There are two different types of primary cell culture based on the kind of cells used:
Adherent Cells: refers to cells requiring a matrix attachment for growth. These are normally isolated from organ tissues where the cells are immobile and surrounded of connective tissues.

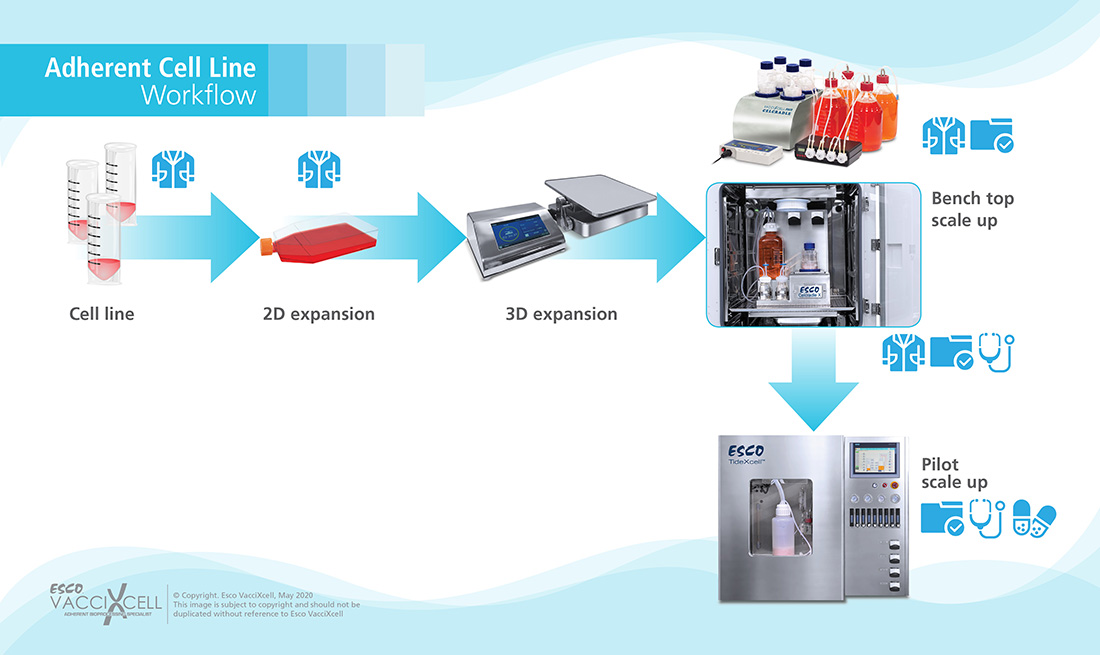

Figure 1. Adherent Cell Workflow
Suspension Cells: opposite to adherent ones, these do not need anchorage or attachment to grow. Such cells are taken from the blood system.

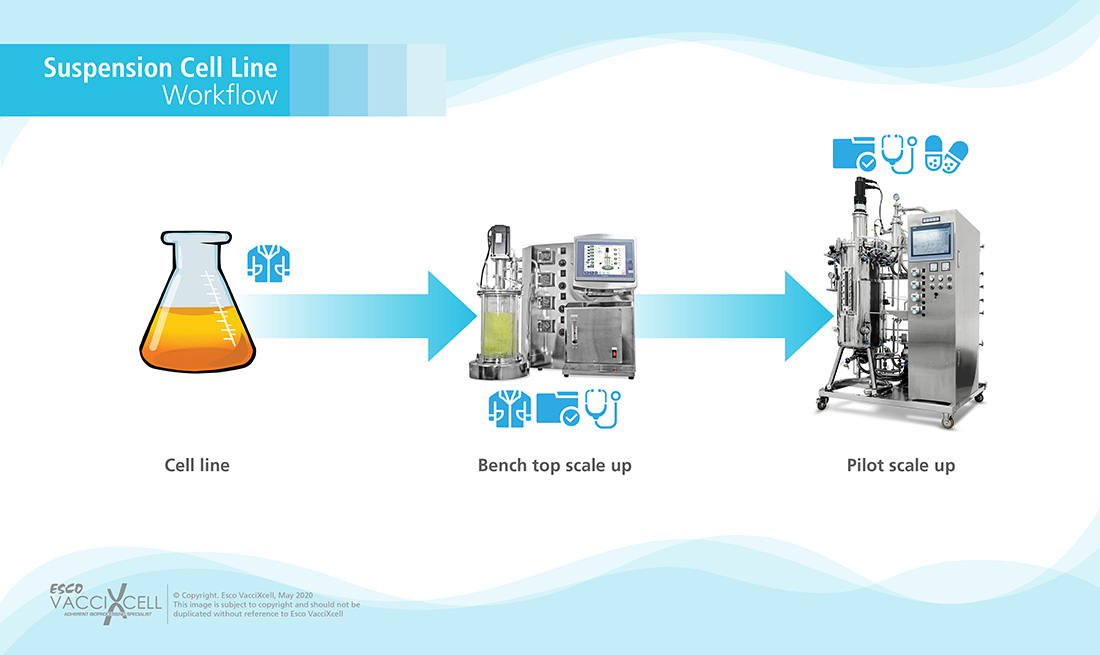

Figure 2. Suspension Cell Workflow
- Secondary Culture: During this process, the cells from the primary culture are transferred to a new vessel equipped with fresh media to facilitate continuous cell proliferation. This process involves disassociating the adhered cells in adherent primary cultures. The importance of this secondary culture is that normally, the amount of cells derived from primary cell culture is insufficient for detailed researches, therefore, with secondary culture, cell population is increased along with their lifespan.
This process is applicable for generating replicated cultures for characterization, preservation, and further experimentation.
This has become a normal procedure for lots of scientists working with primary and/or secondary cell cultures or even cell lines. However, they all encounter the same problems such as:
- Slow growth
- Spontaneous differentiation
- Contamination, etc.
- Alberts, B., Johnson, A., Lewis, J., Raff, M., Roberts, K., & Walter P. (2002). Molecular Biology of the Cell: Isolating Cells and Growing Them in Culture (4th ed.). National Center for Biotechnology Information. Retrieved from: https://www.ncbi.nlm.nih.gov/books/NBK26851/
- Centers for Disease Control and Prevention. (2018). Understanding How Vaccines Work. Retrieved from: https://www.cdc.gov/vaccines/hcp/conversations/downloads/vacsafe-understand-color-office.pdf
- Pedraza, J. (2016). What is the difference between primary and secondary cell culture?. ResearchGate. Retrieved from: https://www.researchgate.net/post/What_is_the_difference_between_primary_and_secondary_cell_culture#:~:text=Primary%20cell%20culture%20is%20the,containers%20under%20controlled%20environmental%20conditions
- ScienceDirect. (n.d.). Cell Isolation. Retrieved from: https://www.sciencedirect.com/topics/immunology-and-microbiology/cell-isolation
- ScienceDirect. (n.d.). Cell Lines. Retrieved from: https://www.sciencedirect.com/topics/neuroscience/cell-lines
- ScienceDirect. (n.d.). Laser Capture Microdissection. Retrieved from: https://www.sciencedirect.com/topics/neuroscience/laser-capture-microdissection
- STEMCELL Technologies. (n.d.). Cell Separation and Cell Isolation Methods. Retrieved from: https://www.stemcell.com/cell-separation/methods#section-immunomagnetic
- Uysal, O., Sevimli, T, Sevimli, M., Gunes, S., & Sariboyaci, A. (2018). Cell and Tissue Culture: The Base of Biotechnology. ScienceDirect. doi: https://doi.org/10.1016/B978-0-12-804659-3.00017-8
- Xu, C., Hu, S., & Chen, X. (2016). Artificial cells: from basic science to applications. materialstoday, 19(9), 516-532. doi: https://doi.org/10.1016/j.mattod.2016.02.020
Cell proliferation refers to the increase in number of cells as a direct result of normal cell growth and division. During the process of vaccine/biological drug formulations, specific cells are targeted and isolated for their benefits to boost patient’s health. Once the target cell has been isolated, it is now time to grow them artificially in the laboratory in order to create biological drugs.
Regulating Cell Proliferation
Cell proliferation is regulated by the presence of several factors such as nutrient levels, temperature, pH, and oxygen, among others, in the internal environment. Cells also use special proteins and specific signalling systems to ensure its proper cycle progression.
Before a cell in the resting phase [Gap 0 (G0)] can enter the cell cycle process (G1), it must first be stimulated by a specific protein commonly referred to as the growth factor. Such proteins responsible for activating G0 cells are categorized into four major groups: growth factors, growth factor receptors, signal transducers, and nuclear regulatory proteins. Cell growth is activated via direct stimulation of the cell’s nucleus. To do this, a growth factor must bind to its receptor located on the cell membrane, which will then be temporarily activated. Afterwards, a signal will be transmitted from the cell surface receptor towards the nucleus; therefore, triggering gene transcription involved in cell proliferation.
Normally, cell proliferation is composed of four major stages:
- Interphase: Gap 1 (G1) phase
- This is the phase where the cell increases in size and is preparing to divide.
- Interphase: Synthesis (S) phase
- The phase where cellular DNA is copied.
- Interphase: Gap 2 (G2) phase
- Copies of cellular DNA will then be organized and condensed; cell prepares to divide.
- Mitosis (M) phase
- Cell division process wherein two copies of the genetic material is partitioned into two daughter cells.
As mentioned earlier, cells also use a signalling system to guarantee proper cell proliferation.
- End of G1 and beginning of G2 checkpoint: helps assess any possible damage in the DNA before and after synthesis.
- Mitosis checkpoint: ensures that all the spindle fibers are properly arranged (metaphase) prior to chromosomal separation (anaphase).
Normally, any abnormalities detected during such events will force apoptosis or programmed cell death. But in the presence of defective proteins, no apoptosis is triggered, rather, malignant transformation can occur which can later on lead to cancer.
In the field of biopharmaceuticals, one way to ensure a reproducible and standardized method of cell proliferation is through the use of bioreactors. Such equipment systems are indispensable tools for cell-based therapies as they maintain a well-controlled microenvironment wherein cells can easily grow.
Bioreactors have been extensively used for the expansion of red blood cells, chimeric antigen receptor (CAR) T cells, induced pluripotent stem cells, and even mesenchymal stem cells.
There are many different types of bioreactors available in the market today for adherent culture. Choosing the right bioreactor system for cells is crucial for cell culture success. The choice of the bioreactor system to use highly depends on the type of cells to be produced, the desired product, the process of cell culture, and the product density.
As part of Esco Healthcare’s division, Esco VacciXcell offers different types of bioreactors for different types of adherent cells.

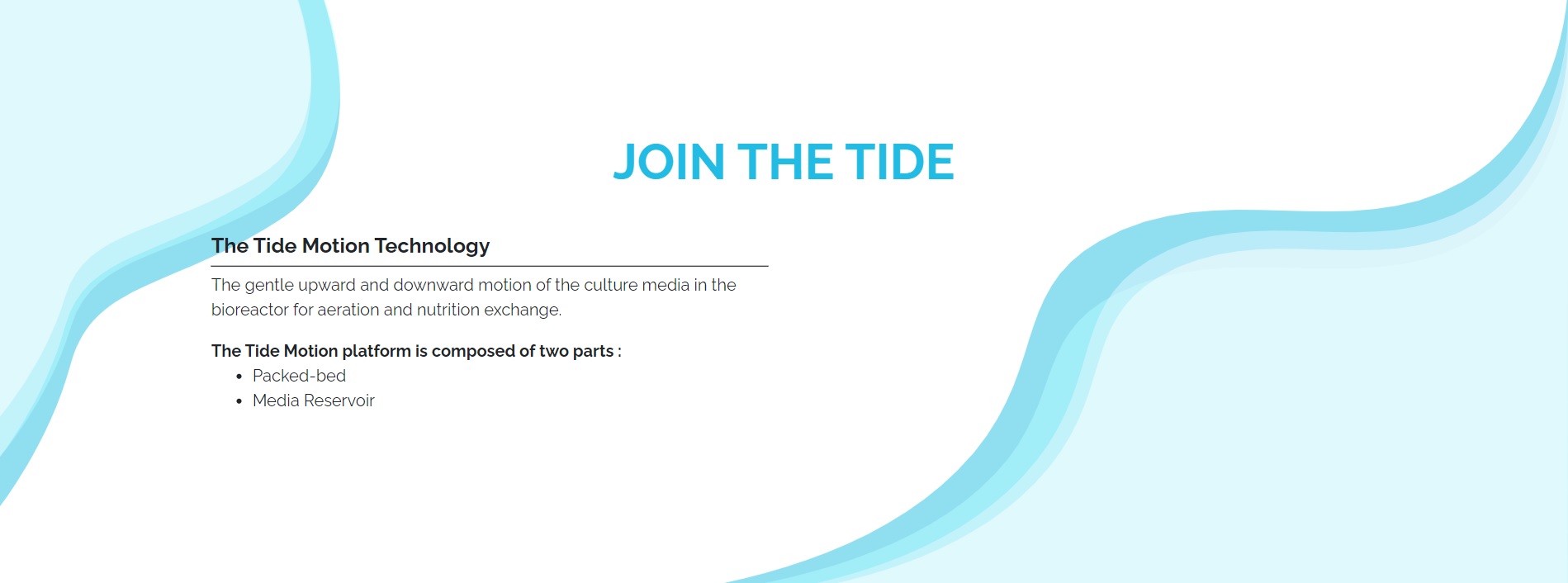

Figure 3. Tide Technology for bioreactors
- Anderson, H, (n.d.). Cell Proliferation and Cell Cycle: Definitions Vs Differentiation. Microscope Master. Retrieved from: https://www.microscopemaster.com/cell-proliferation.html
- Brody, L. (n.d.). Cell Cycle. National Human Genome Research Institute. Retrieved from: https://www.genome.gov/genetics-glossary/Cell-Cycle
- Nature Research. (n.d.). Cell Proliferation. Retrieved from: https://www.nature.com/subjects/cell-proliferation#:~:text=Cell%20proliferation%20is%20the%20process,through%20cell%20death%20or%20differentiation.
- ScienceDirect. (n.d.). Cell Proliferation. Retrieved from: https://www.sciencedirect.com/topics/medicine-and-dentistry/cell-proliferation
- Stephenson, M., & Grayson, W. (2018). Recent advances in bioreactors for cell-based therapies. National Center for Biotechnology Information. Retrieved from: https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5931275/#:~:text=Bioreactors%20for%20cell%20proliferation%20and%20differentiation,-The%20therapeutic%20promise&text=A%20few%20types%20of%20bioreactors,cellular%20responses%20to%20microenvironmental%20cues.
- The Editors of Encyclopaedia Britannica. (2020). Vacuole. Britannica. Retrieved from: https://www.britannica.com/science/vacuole
- Yang, N., Ray, S.D., & Krafts, K. (2014). Cell Proliferation. ScienceDirect. Retrieved from: https://www.sciencedirect.com/science/article/pii/B9780123864543002748
Cell banking refers to the collection, processing, and storage of specific cell lines, especially stem cells, with the capacity to provide life-saving biopharmaceutical products. Cell banking offers a reproducible way to manufacture high-quality, safe, and efficient biological products that have undergone proper characterization. Processes involved in cell banking are safe, non-invasive and risk free.

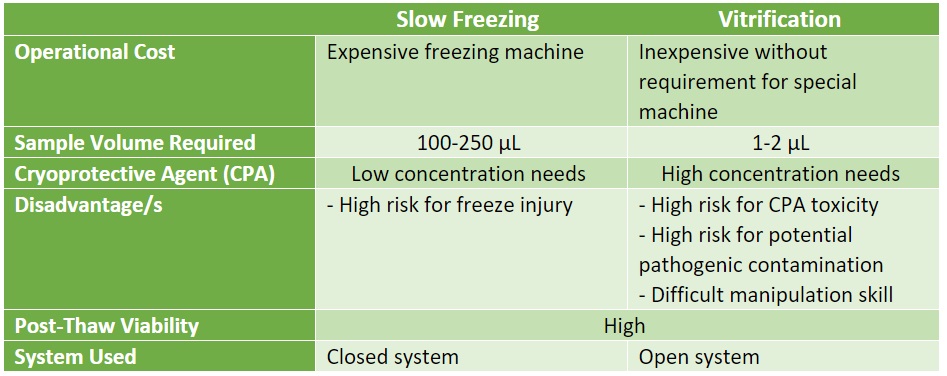

Table 1. Different methods of Cryopreservation
